Token GitHub App

Note

This section of the documentation is applicable only to GitHub SciTools Organisation owners and administrators.

Note

The iris-actions GitHub App has been rebranded with the more generic name scitools-ci, as the app can be used for any SciTools repository, not just iris specifically.

All of the following instructions are still applicable.

This section describes how to create, configure, install and use our SciTools GitHub App for generating tokens for use with GitHub Actions (GHA).

Background

Our GitHub Continuous Integration (CI) workflows require fully reproducible conda environments to test iris and build our documentation.

The iris refresh-lockfiles GHA workflow uses the conda-lock package to routinely generate a platform specific lockfile containing all the package dependencies required by iris for a specific version of python.

The environment lockfiles created by the refresh-lockfiles GHA are contributed back to iris though a pull-request that is automatically generated using the third-party create-pull-request GHA. By default, pull-requests created by such an action using the standard GITHUB_TOKEN cannot trigger other workflows, such as our CI.

As a result, we use a dedicated authentication GitHub App to securely generate tokens for the create-pull-request GHA, which then permits our full suite of CI testing workflows to be triggered against the lockfiles pull-request. Ensuring that the CI is triggered gives us confidence that the proposed new lockfiles have not introduced a package level incompatibility or issue within iris. See Use GitHub App.

Create GitHub App

The GitHub App is created for the sole purpose of generating tokens for use with actions, and must be owned by the SciTools organisation.

To create a minimal GitHub App for this purpose, perform the following steps:

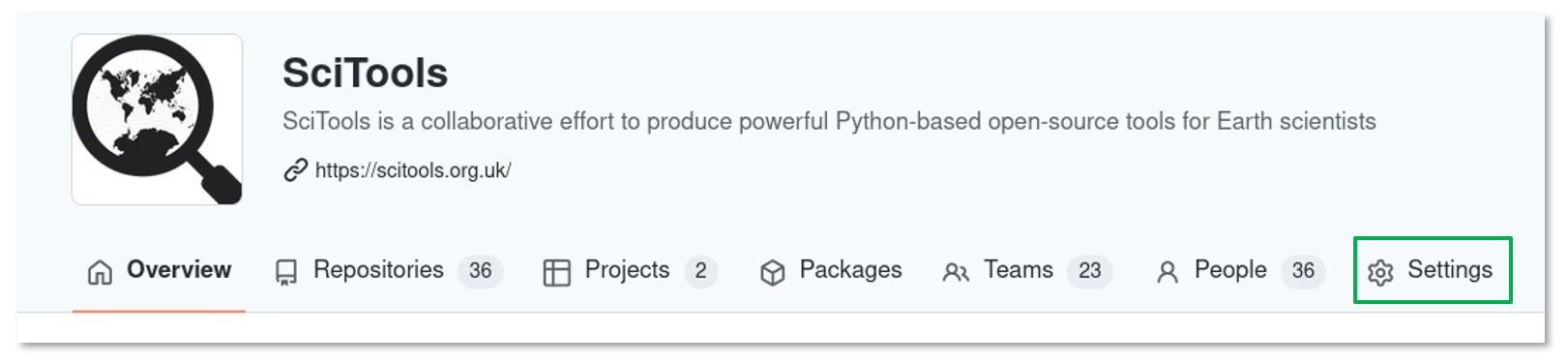

1. Click the SciTools organisation ⚙️ Settings option.

2. Click the GitHub Apps option from the <> Developer settings section in the left hand sidebar.

3. Now click the New GitHub App button to display the Register new GitHub App form.

Within the Register new GitHub App form, complete the following fields:

4. Set the mandatory GitHub App name field to be iris-actions.

5. Set the mandatory Homepage URL field to be https://github.com/SciTools/iris

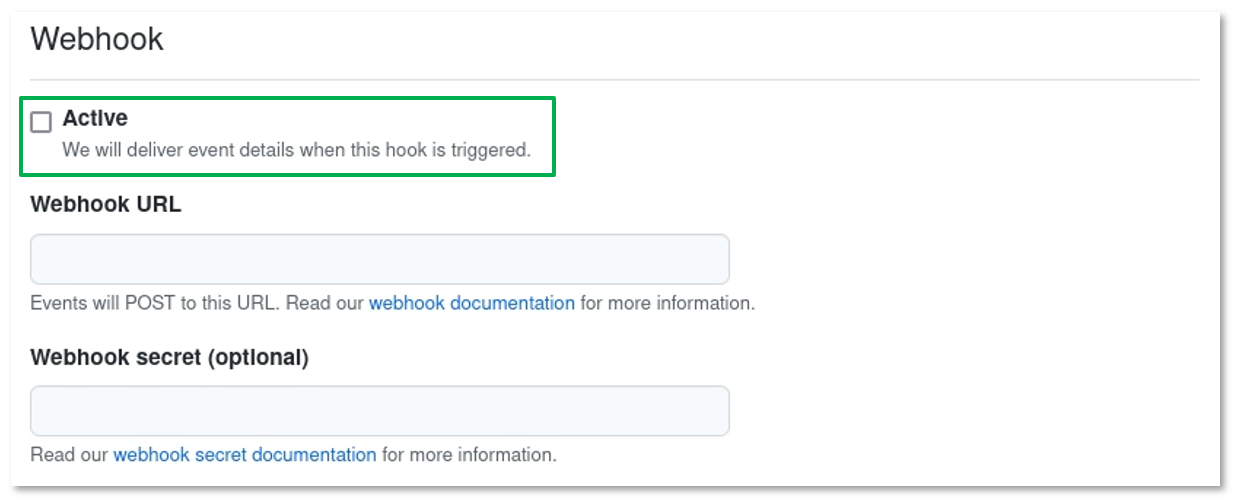

6. Under the Webhook section, uncheck the Active checkbox. Note that, no Webhook URL is required.

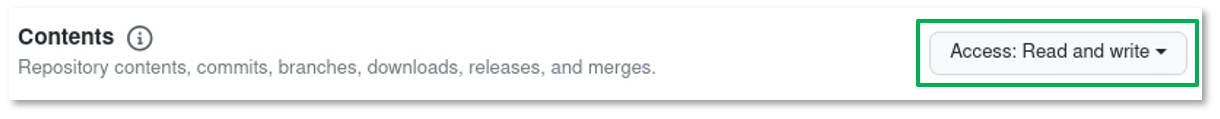

7. Under the Repository permissions section, set the Contents field to be Access: Read and write.

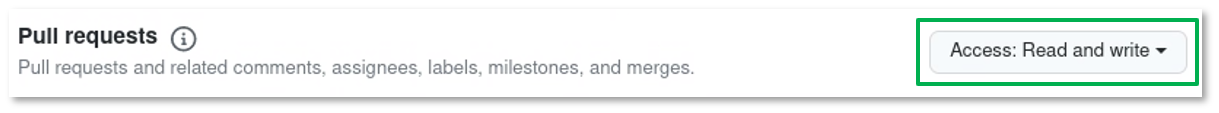

8. Under the Repository permissions section, set the Pull requests field to be Access: Read and write.

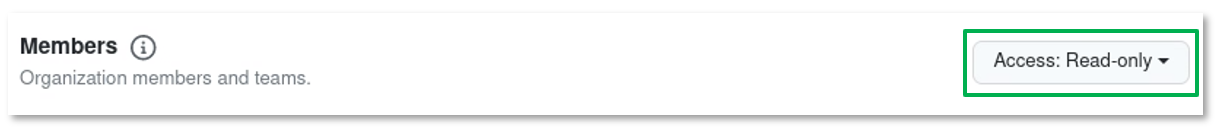

9. Under the Organization permissions section, set the Members field to be Access: Read-only.

10. Under the User permissions section, for the Where can this GitHub App be installed? field, check the Only on this account radio-button i.e., only allow this GitHub App to be installed on the SciTools account.

11. Finally, click the Create GitHub App button.

Configure GitHub App

Creating the GitHub App will automatically redirect you to the SciTools settings / iris-actions form for the newly created app.

Perform the following GitHub App configuration steps:

1. Under the About section, note of the GitHub App ID as this value is required later. See Create Repository Secrets.

2. Under the Display information section, optionally upload the iris logo as a png image.

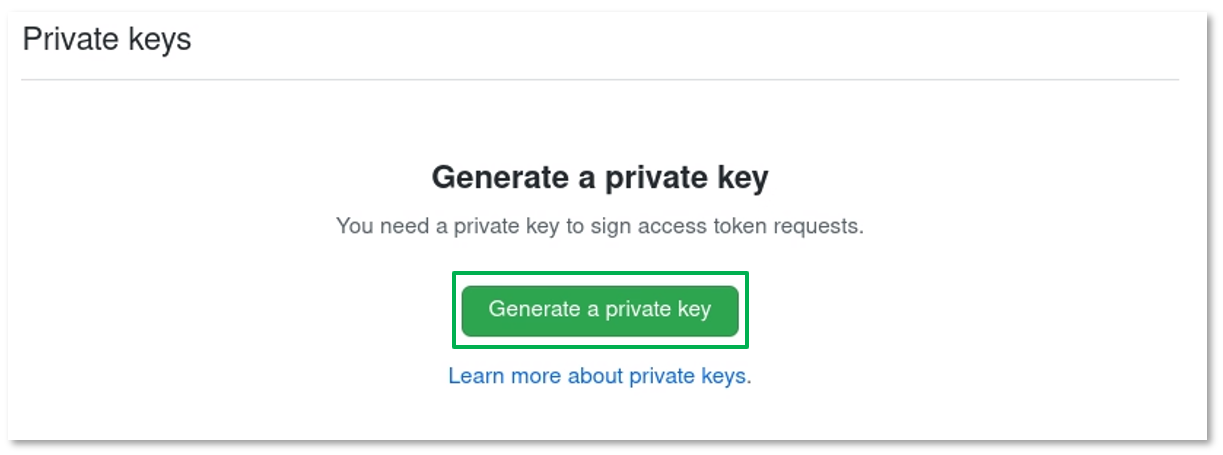

3. Under the Private keys section, click the Generate a private key button.

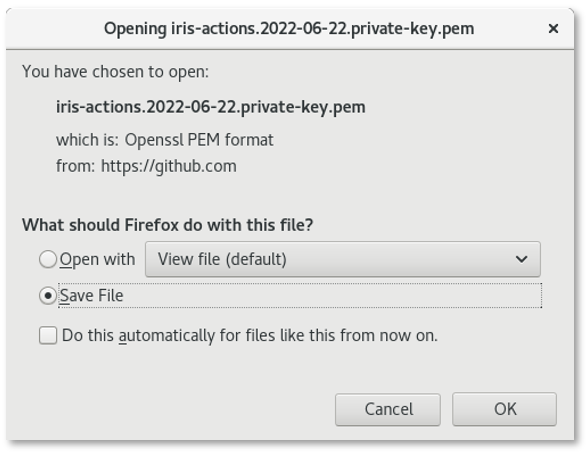

GitHub will automatically generate a private key to sign access token requests for the app. Also a separate browser pop-up window will appear with the GitHub App private key in OpenSSL PEM format.

Important

Please ensure that you save the OpenSSL PEM file and securely archive its contents. The private key within this file is required later. See Create Repository Secrets.

Install GitHub App

To install the GitHub App:

1. Select the Install App option from the top left menu of the Scitools settings / iris-actions form, then click the Install button.

2. Select the Only select repositories radio-button from the Install iris-actions form, and choose the SciTools/iris repository.

3. Click the Install button.

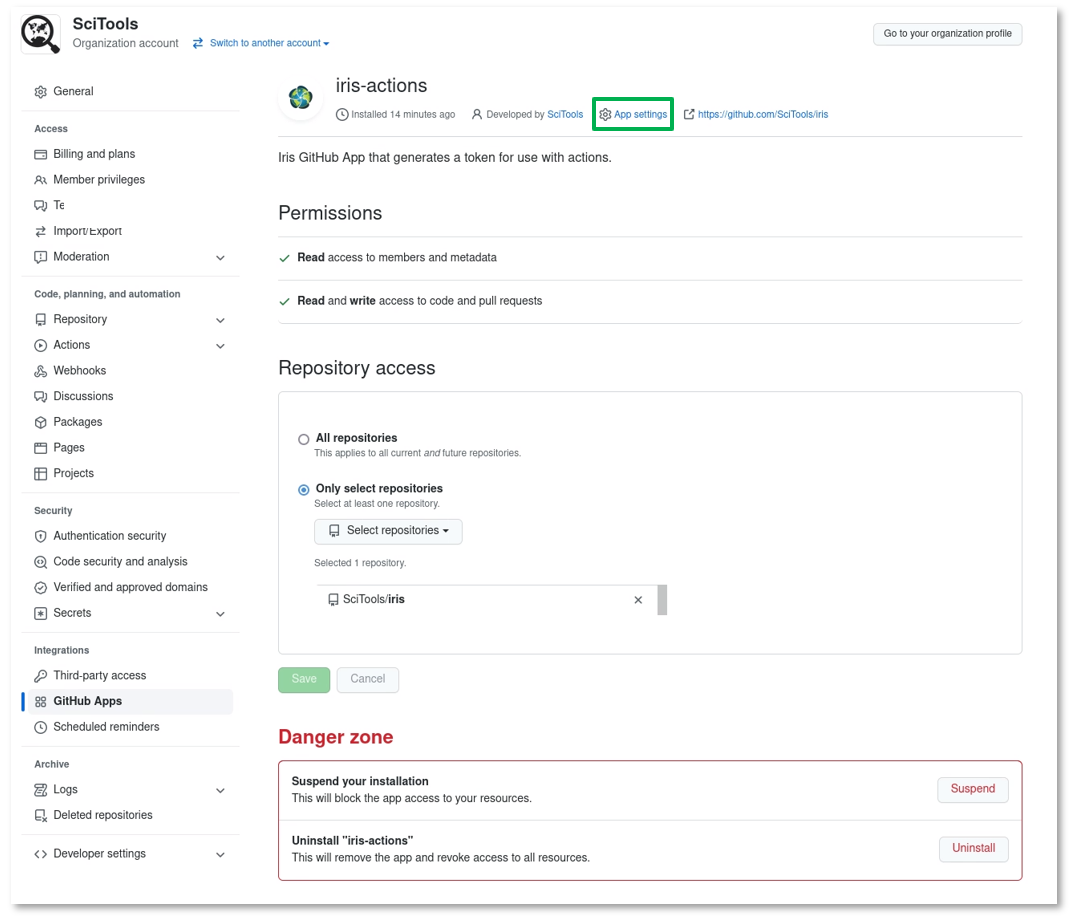

   The successfully installed iris-actions GitHub App is now available under the GitHub Apps option in the Integrations section of the SciTools organisation Settings. Note that, to reconfigure the installed app click the ⚙️ App settings option.

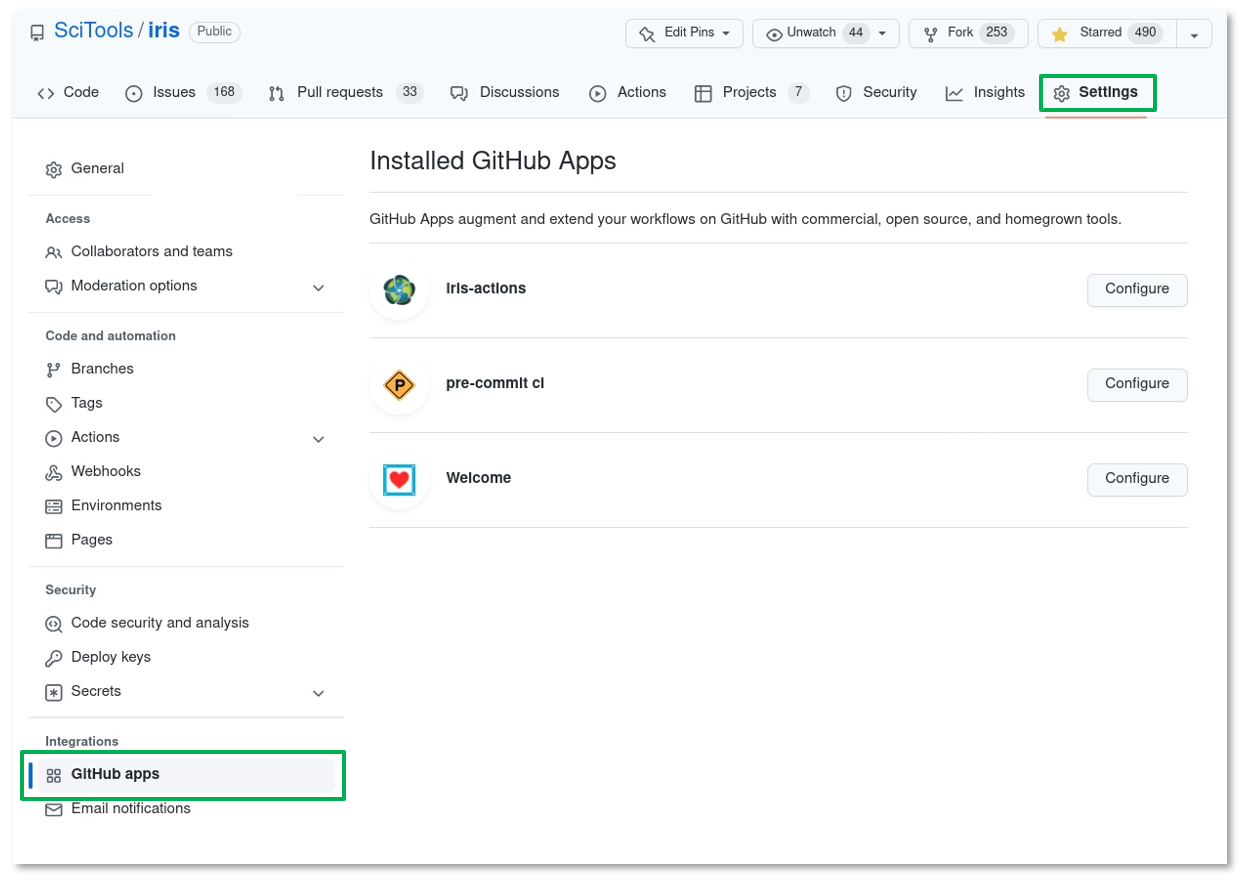

4. Finally, confirm that the iris-actions GitHub App is now available within the SciTools/iris repository by clicking the GitHub apps option in the ⚙️ Settings section.

Create Repository Secrets

The GitHub Action that requests an access token from the iris-actions GitHub App must be configured with the following information:

• the App ID, and

• the OpenSSL PEM private key

associated with the iris-actions GitHub App. This sensitive information is made securely available by creating SciTools/iris repository secrets:

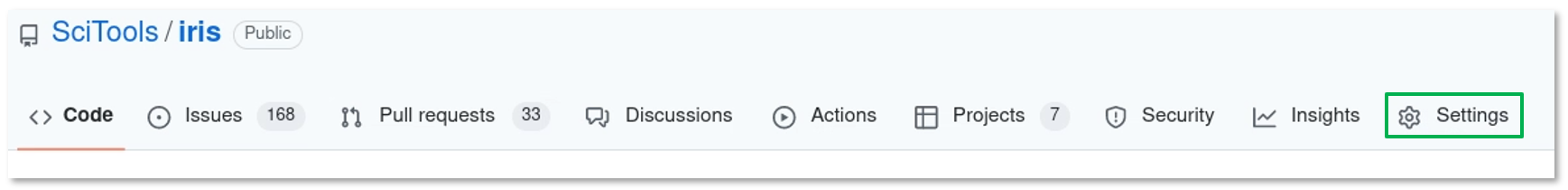

1. Click the SciTools/iris repository ⚙️ Settings option.

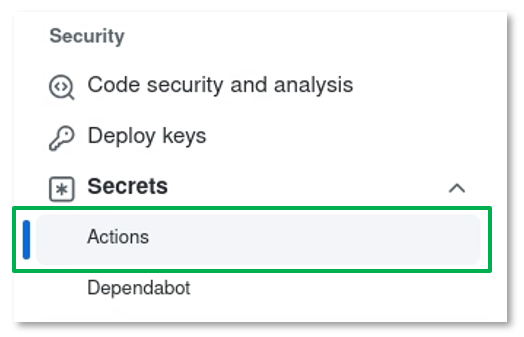

2. Click the Actions option from the Security section in the left hand sidebar.

3. Click the New repository secret button.

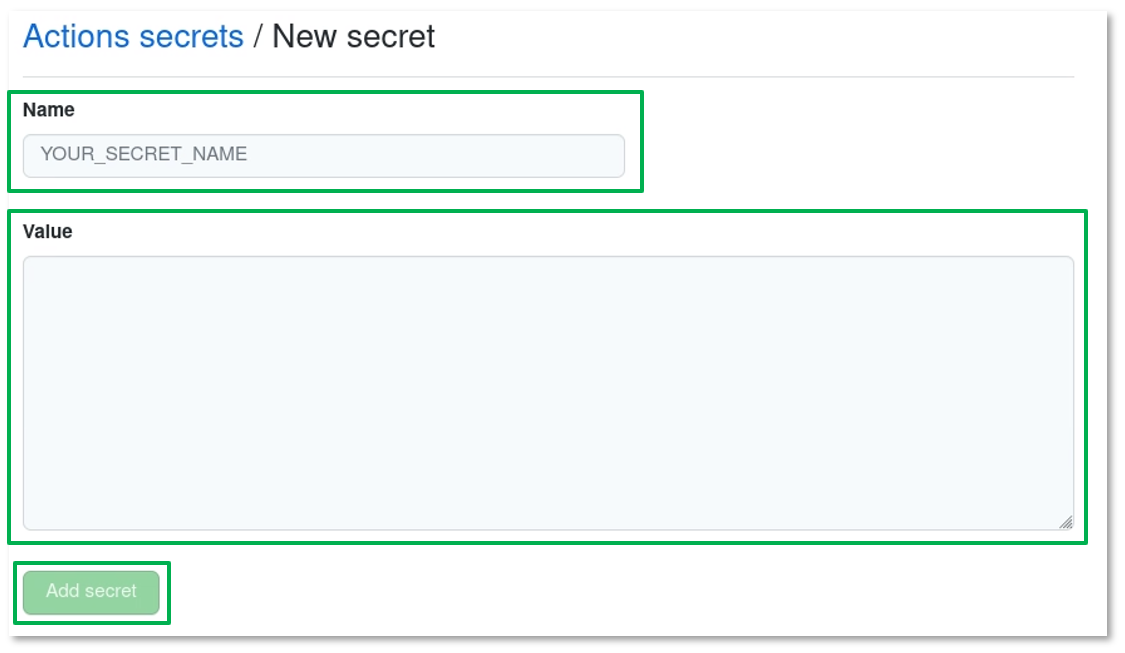

4. Complete the Actions secrets / New secret form for the App ID:

   • Set the Name field to be AUTH_APP_ID.

   • Set the Value field to be the numerical iris-actions GitHub App ID. See here.

   • Click the Add secret button.

5. Click the New repository secret button again, and complete the form for the OpenSSL PEM:

   • Set the Name field to be AUTH_APP_PRIVATE_KEY.

   • Set the Value field to be the entire contents of the OpenSSL PEM file. See here.

   • Click the Add secret button.

A summary of the newly created SciTools/iris repository secrets is now available:

Use GitHub App

The following example workflow shows how to use the github-app-token GHA to generate a token for use with the create-pull-request GHA:
